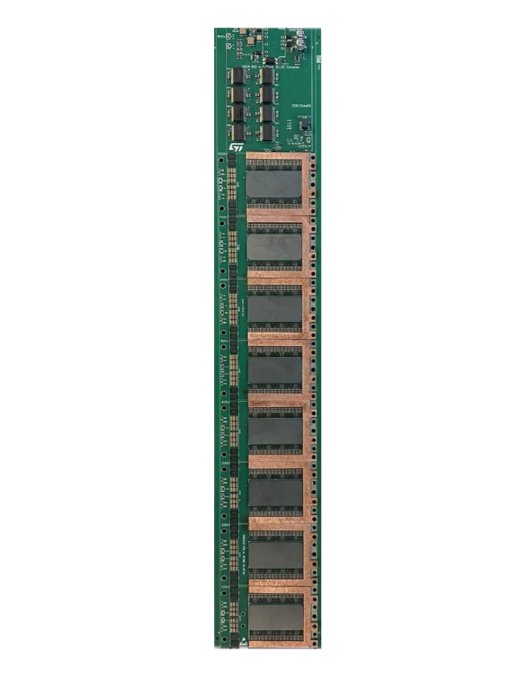

➢ Soft-switching resonant topology + Advanced magnetic integration
➢ 800V to 6V isolated converter, 128:1 fixed ratio
➢ Max output power: 20 kW
➢ Full-load output current: 3333 A
➢ Ultra-high efficiency: Peak > 96.5%, Full-load 95%
➢ Compact size: 75 x 500 x 5mm
➢ Power density: 107W/cm^3

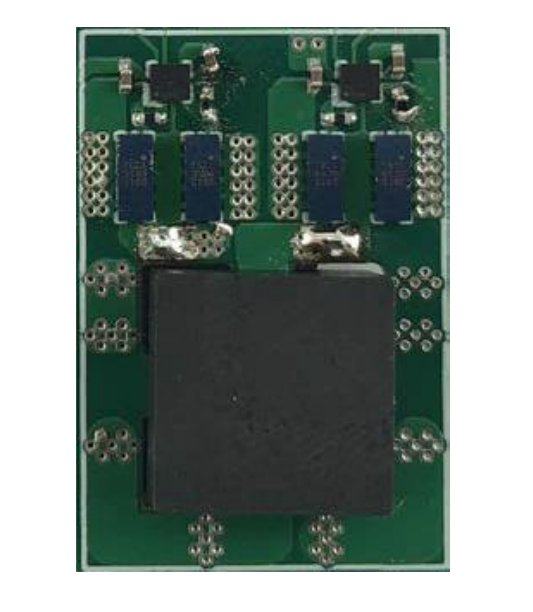

➢ 2-phase interleaved buck topology + Advanced coupled inductor integration
➢ 12V to sub-1V non-isolated converter, adjustable ratio
➢ Rated output power: 100 W
➢ Rated output current: up to 100 A
➢ Efficiency: Peak > 94%, Full-load 93% (further optimization ongoing)
➢ Compact size: 20 x 27 x 4.5mm (further optimization ongoing)
➢ Power density: 41W/cm^3

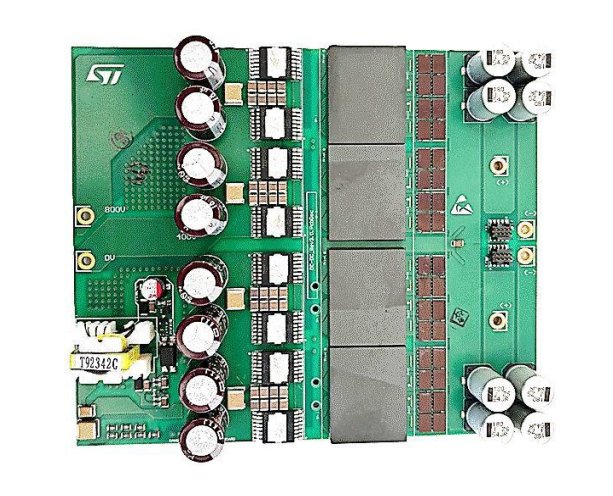

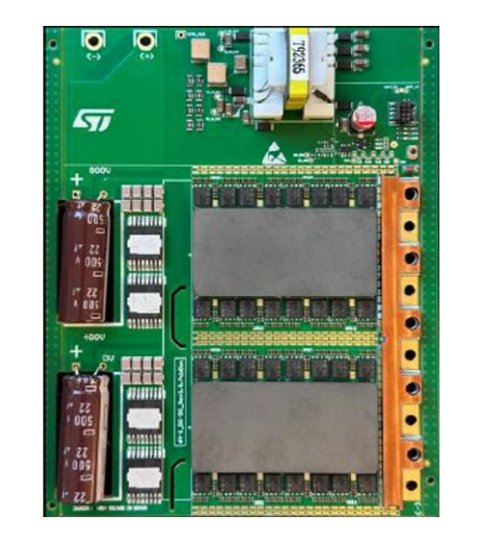

➢ Soft-switching resonant topology + Advanced magnetic integration
➢ 800V to 12V isolated converter, 64:1 fixed ratio
➢ Max output power: 6 kW
➢ Full-load output current: 500 A
➢ Ultra-high efficiency: Peak > 97.5%, Full-load 96.5%
➢ Compact size: 100 x 140 x 5mm
➢ Power density: 86W/cm^3

➢ Isolated current multiplier topology + Advanced magnetic integration
➢ 48V to sub-1V current multiplier converter, adjustable ratio
➢ Rated output power: 200 W
➢ Rated output current: 200 A
➢ Efficiency: Peak > 92%, Full-load 90% (further optimization ongoing)
➢ Compact size: 20 x 20 x 12mm (further optimization ongoing)
➢ Power density: 42W/cm^3

➢ 4-phase interleaved buck topology + Advanced coupled inductor integration
➢ 40–60V to 36V non-isolated converter, adjustable ratio
➢ Rated output power: 1000 W
➢ Rated output current: 30 A
➢ Ultra-high efficiency: Peak > 99%, Full-load 98.2%
➢ Compact size: 56 x 37 x 6mm
➢ Power density: 80W/cm^3

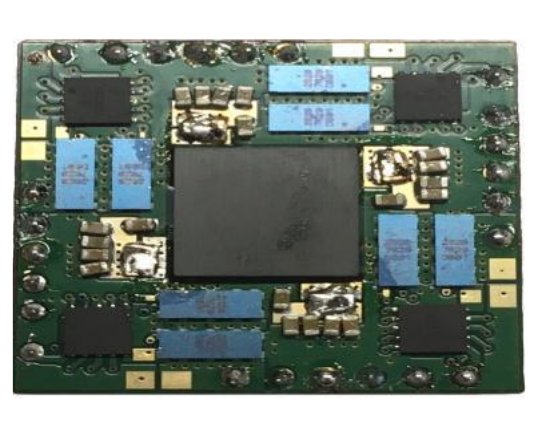

➢ 4-phase interleaved buck topology + Advanced coupled inductor integration
➢ 6V to sub-1V non-isolated converter, adjustable ratio
➢ Rated output power: 100 W
➢ Rated output current: up to 100 A
➢ Ultra-high efficiency: Peak > 95%, Full-load 94% (further optimization ongoing)
➢ Compact size: 25 x 25 x 4.5mm (further optimization ongoing)
➢ Power density: 36W/cm^3

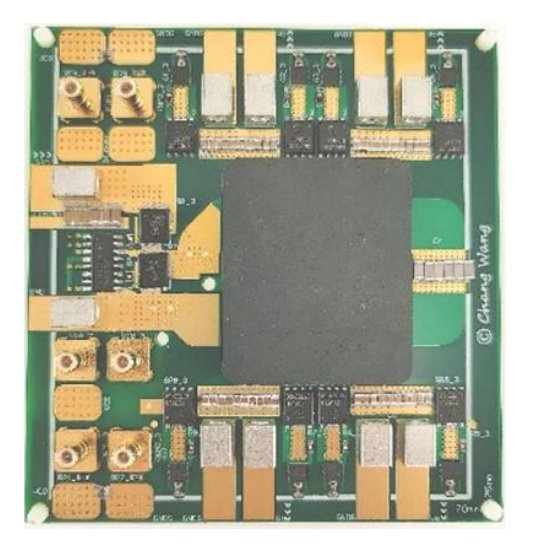

➢ Soft-switching resonant topology + Advanced magnetic integration
➢ 48V to 6V isolated converter, 8:1 fixed ratio
➢ Rated output power: 900 W
➢ Rated output current: up to 150 A
➢ Ultra-high efficiency: Peak > 98%, Full-load 96.5% (further optimization ongoing)
➢ Compact size: 70 x 70 x 6mm (further optimization ongoing)
➢ Power density: 31W/cm^3

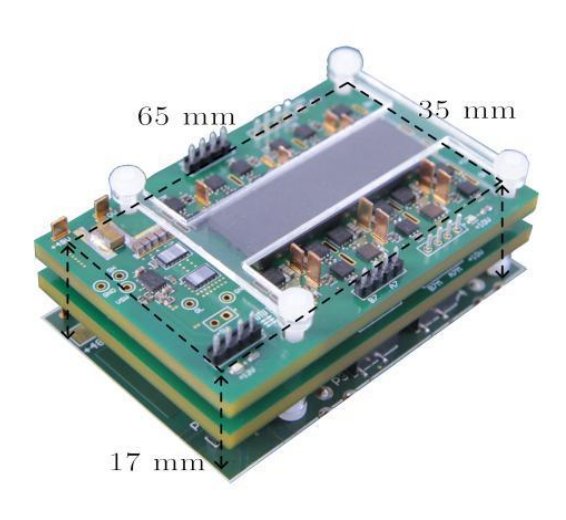

➢ Soft-switching resonant topology + Advanced magnetic integration
➢ 48V to 1V isolated converter, 48:1 ultra-high fixed ratio
➢ Rated output power: 500 W
➢ Rated output current: up to 500 A
➢ Efficiency: Peak > 91%, Full-load 89% (further optimization ongoing)
➢ Dimensions: 65 x 35 x 17mm (further optimization ongoing)
➢ Power density: 13W/cm^3

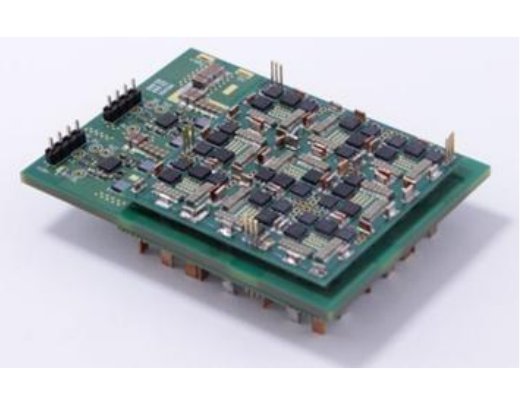

➢ Isolated current multiplier topology + Advanced magnetic integration
➢ 48V to sub-1V isolated converter, adjustable ratio
➢ Max output power: 2000 W
➢ Full-load output current: up to 900 A
➢ Efficiency: Peak > 91.5%, Full-load 90% (further optimization ongoing)
➢ Compact size: 60 x 54 x 9.5mm
➢ Power density: 65\W/cm^3
➢ GPU-compatible footprint, enable VPD when packaged

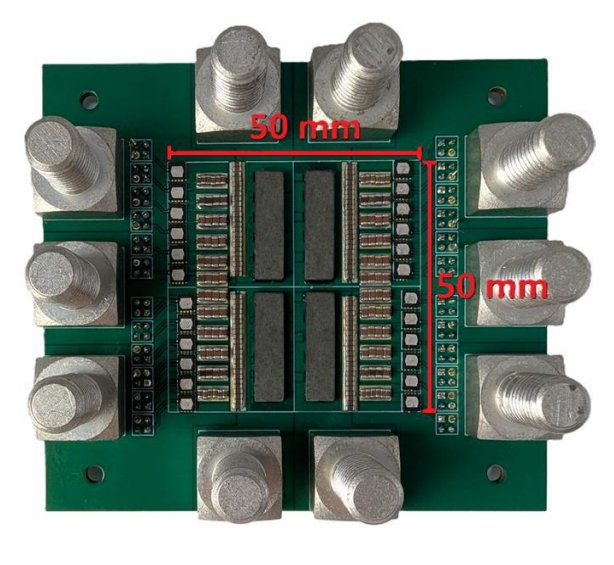

➢ High step-down ratio topology + Advanced coupled inductor integration
➢ 48V to sub-1V non-isolated converter, adjustable ratio
➢ Max output power: 1600 W
➢ Full-load output current: up to 800 A
➢ Ultra-high efficiency: Peak > 93%, Full-load 90%
➢ Compact size: 50 x 50 x 6mm
➢ Power density: 107W/cm^3
➢ GPU-compatible footprint, enable VPD when packaged

➢ Soft-switching resonant topology + Advanced magnetic integration
➢ 800V to 50V isolated converter, 16:1 fixed ratio
➢ Max output power: 12 kW
➢ Full-load output current: 240 A
➢ Ultra-high efficiency: Peak > 98.5%, Full-load 98%
➢ Compact size: 147 x 124 x 5\mm
➢ Power density: 132 W/cm^3
